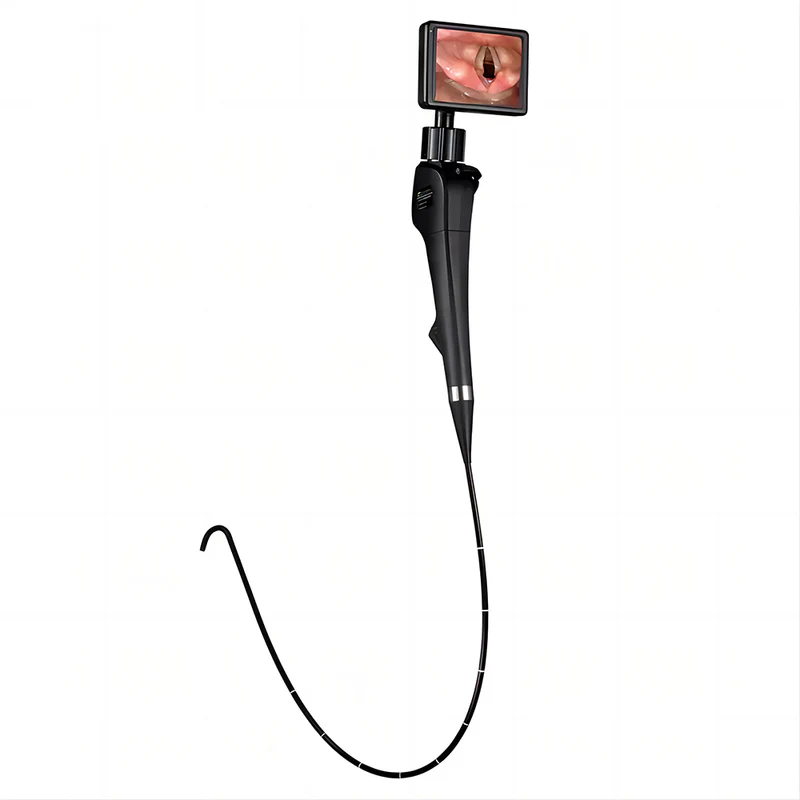

Portable:Light weigh, Easy to operate, Saving time for EMS, Convenient for transportation and storage

*Multifunction:Available for the intubation of difficult airway,Inspection of airway and double chamber,Alveolar lavage,Biopsy, Treatment of pneumothorax,Stent Implantation, Removal of tracheal foreign bodies,Other treatments for the bronchi, Such as Local radiotherapy and chemotherapy,Medication Injection

*Economic:One screen for four scopes, Four working channel sizes for option

*Durable:Electronic camera system with LED, New technology for the photo processing: CMOS,Higher quality pictures, Last longer than traditional scope

*Application:Applied to the departments such as: ICU, NICU, Respiration, Anesthesia, Emergency etc.

*Horizontal and vertical rotation angle: ≥120°
*HD full view screen
*6 function buttons, USB port
*HDMI port for big display.
*1 lock design
*Fast installation and disassembling
*Available for the intubation of difficult airway,Inspection of airway and double chamber,Alveolar lavage ,Biopsy,Treatment of pneumothorax,Stent Implantation,Removal of tracheal foreign bodies,Other treatments for the bronchi,such as Local radiotherapy and chemotherapy,Medication Injection
*One screen for four scopes, Four working channel sizes for option
*Electronic camera system with LED, New technology for the photo processing: CMOS
*Higher quality pictures, Last longer than traditional scope

Specifications:

Size OD58 OD52 OD39 OD28
Illumination LED LED LED LED
Joint Outer Diameter 5.8mm 5.2mm 3.9mm 2.8mm
Instrument Chanel Inner Diameter 2.6mm 2.2mm 1.2mm Omm
Working Lenth 650mm 650mm 650mm 650mm
Anti-Fog Anti-fog when it's on,no need for preheating. Anti-fog when it's on,no need for preheating. Anti-fog when it's on,no need for preheating. Anti-fog when it's on,no need for preheating.


Size 3.5inch
Storage SD Card
Shoot Support
Video Record Support
White Balance Support
Freeze/Backwards Support
Video Synchronous Out put Support


Note:

*OD28/OD39 is not applicable for endoscopic diagnosis and treatment accessories.
*OD28/OD39/OD52/M58 is not suitable for high-frequency electrotherapy surgery and laser
hemostasis.
*Continuous working time in more than two hours, but it depends on ambient temperature and battery condition.

Air shipping ≤20 kg

Sea shipping＞ 20 kg

If shipped by air delivery will take approximately 10 to 20 days. lf shipped by sea, it may take 10 to 45 days
